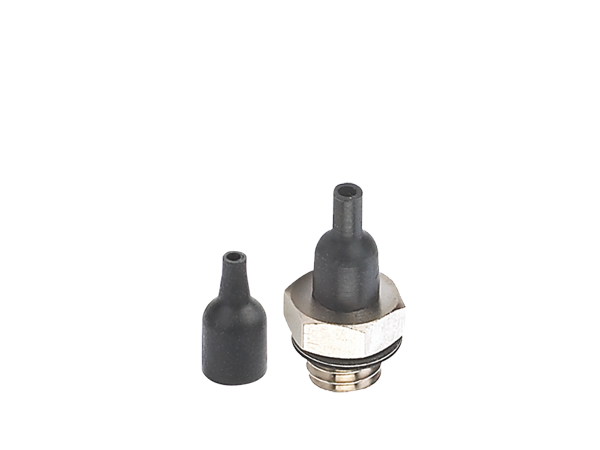

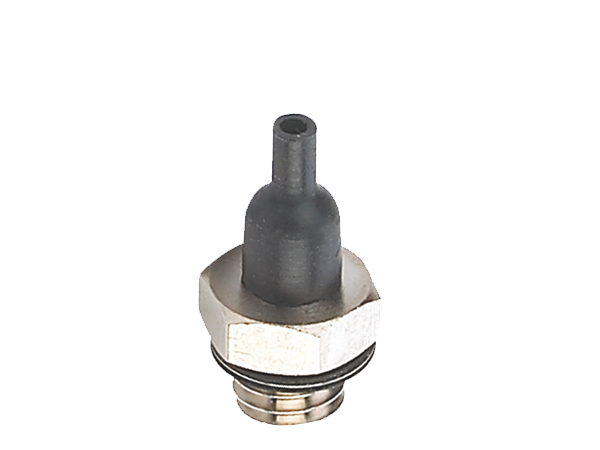

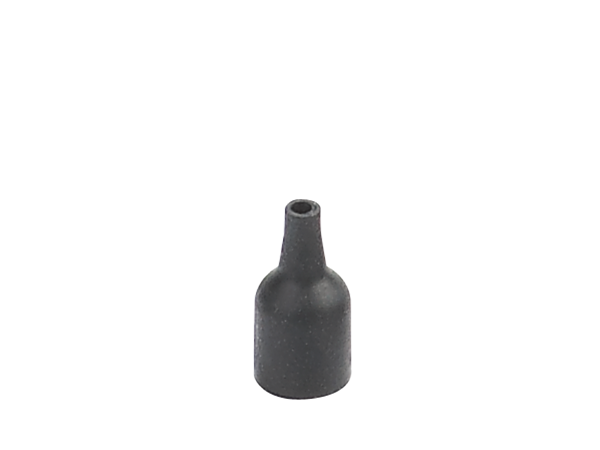

Features
◇ Unique nozzle design.
◇ Quick handling during suction .
◇ Micro suction cup with small diameter.
Applications
◇ Foil
◇ Electronic component
| How to order | |||
| SAN 0.8 N -M5M ① ② ③ ④ | |||
| ① Series | ② Diameter | ③ Material & Hardness | ④ Connection thread |
| SAN | 0.8 -φ0.8mm 1.1 -φ1.1mm | N - NBR WS - White silicone CN - Conductive NBR CS - Conductive silicone | Nil - Suction cup alone， no connection thread M5M - M5Male thread |
| Technical parameters | |||
| Suction cup diameter | Pull-out force (N) | Inner volume (cm3) | Recommended tube diameter (mm) |
| SAN0.8 | 2.3 | 2.3 | 4.0 |
| SAN1.1 | 4.2 | 4.3 | 4.0 |
◇ Note: Testing vacuum level -60kPa. Workpiece with smooth and clean surface. The data of pull-out force as above are figured out
without considering safety factor. The data may be different according to different workpiece surfaces.

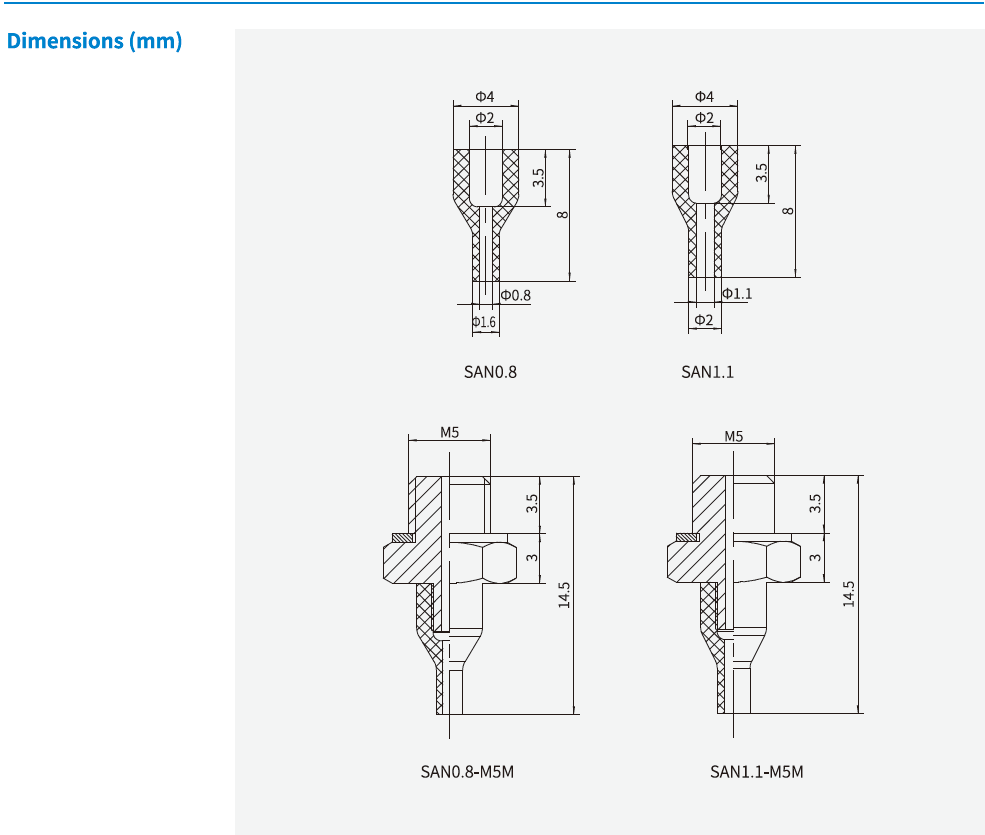

| Model of spare parts | ||||
| Spare parts | Model | Vacuum pad | ||
| Fitting for suction cup | PJS-M5M-SAN1.1 | SAN0.8、1.1 | ||
